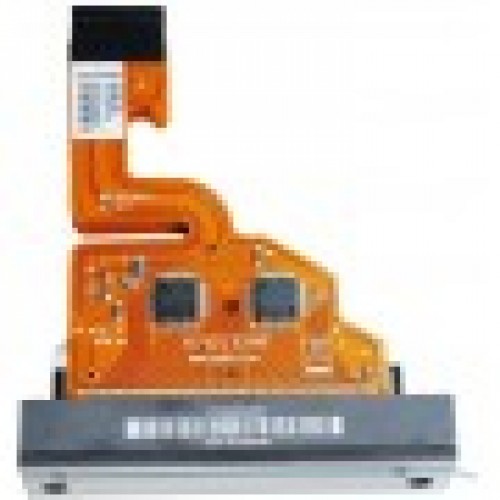

Spectra Nova PH 256/80 AAA Printhead

Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line at a 0.011 inch distance between nozzles.

Features

    75 picoliter calibrated drop size
    Resolutions up to 450 dpi
    256 individually addressable, inline nozzles
    Supports solvent, UV-curable, and aqueous inks
    Head Interface Board for serial data transmission
    Ink reservoir, deaeration system, and fluid filter
    Ink level sensor
    Orientation independent
    Temperature control
